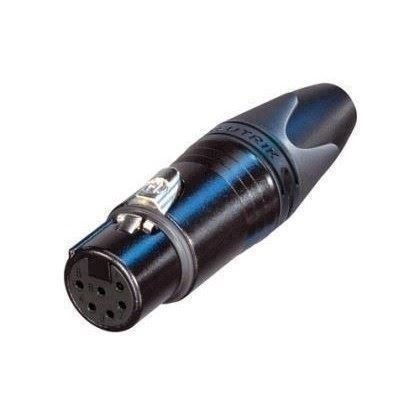

6 pole female cable connector with black metal housing and gold contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to asse
Teknisk specifikationer Capacitance
between contacts≤ 7 pF Contact resistance≤ 3 mΩ (inner) Dielectric
strength1,5 kVdc Insulation resistance> 2 GΩ (initial) Rated current
per contact7,5 A Rated voltage50 V Cabel O.D.3.5 - 8.0 mm Insertion
force≤ 20 N Withdrawal force≤ 20 N Lifetime> 1000 mating
cycles Wiresize max. 1.0 mm² Wiresize max. 18 AWG Wiring Solder
contacts Locking device Latch lock Boot Polyuretan Bushing Polyamide
(PA 6 15% GR) Contact plating2 µm Ag over 2 µm Ni Contacts Brass
(CuZn39Pb3) Insert Polyamide (PA 6.6 30 % GR) Locking element Zinc diecast
(ZnAl4Cu1) / Ck 67 (spring) Shell Zinc diecast (ZnAl4Cu1) Shell plating
Nickel Strain relief Polyacetal (POM) Flammability UL 94 HB Standard
compliance IEC 61076-2-103 Protection class IP 40 SolderabilityComplies
with IEC 68-2-20 Temperature range-30 °C to +80 °C
