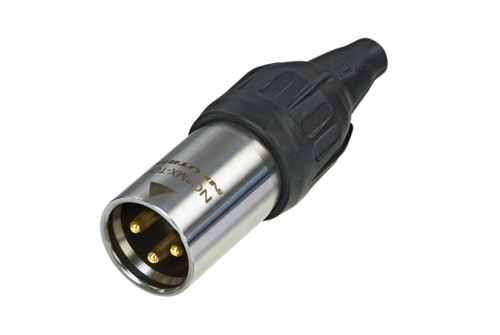

NC3MX-TOP XLR kabel stik han, IP65, TRUE OUTDOOR PROTECTED. XLR stik i TOP-serien er heavy-duty connectorer til udendørs brug. forsynet med guldkontakter. IP65 opnås når stikket klikkes sammen med en TOP chassis connector eller et andet TOP-stik.
NC3MX-TOP XLR kabel stik han, True Outdoor Performance
Capacitance between contacts: = 4 pF
Contact resistance: = 3 mO
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GO (initial)
Rated current per contact: 8,3 A
Rated voltage: < 50 V
Cable O.D.: 5,0 - 8,0 mm
Insertion force: = 20 N
Withdrawal force: = 20 N
Lifetime: > 5000 mating cycles
Wiresize: max. 1.5 mm²
Wiresize: max. 16 AWG
Wiring: Solder contacts
Locking device: Latch lock
Bushing UV-resistant rubber
Contact plating: 0,2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn8)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Stainless steel
Shell: Stainless steel
Strain relief: Polyacetal (POM)
Sealing jacket: UV-resistant rubber
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 65 (when mated)
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
