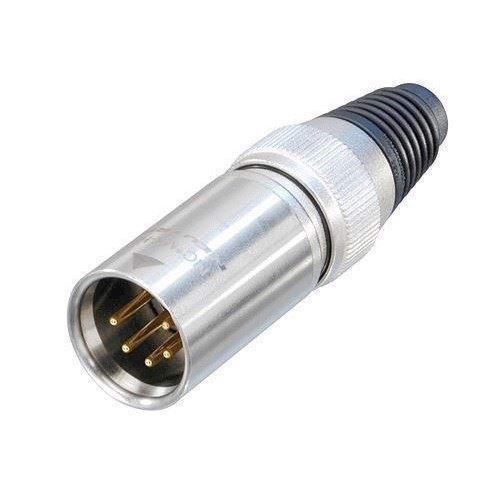

5 pole male cable connector, heavy duty, metal boot and stainless steel shell, gold contacts
The X-HD Series is a Heavy duty XLR cable connector for outdoor use. All metal design, dust and water protected according to IP 65 by mating with relate
Teknisk specifikationer
Title
NC5MX-HD
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
≤ 7 pF
Contact resistance
≤ 3 mΩ (inner)
Dielectric strength
1,5 kVdc
Insulation resistance
> 2 GΩ (initial)
Rated current per contact
7,5 A
Rated voltage
50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 1.0 mm²
Wiresize
max. 18 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Bushing
Stainless steel
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Stainless steel
Shell
Stainless steel
Shell plating
Nickel
Strain relief
Polyacetal (POM)
Environmental
Approvals
UL
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 65
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
