4'' mellemtone - MSH-115 - NUMBER ONE

• På lager
• På lager, 2-4 dage
• Bedømmelse for 4'' mellemtone - MSH-115 - NUMBER ONE

  Bedømmelse: 4 ud af 5 baseret på 1 stemmer

•
  419,00DKK ved 1 stk.

Vis uden moms

A design which has become classic by now and materials which seem to be basic but of perfect workmanship, thus allowing for an excellent sound!

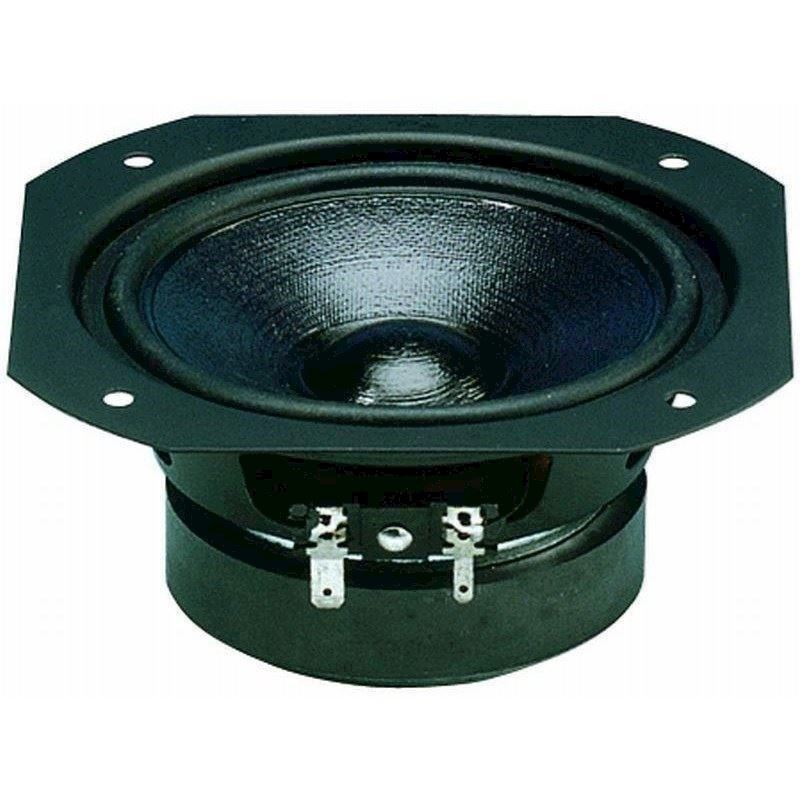

Hi-fi midrange speaker, 50 W, 8 Ω

• High-end technology matching the SPH-... series
• Coated special cone
• Dust cap with high damping
• Extra flat basket (no need to recessed installation)
• Top linearity
• Perfect mass-drive ratio
• Wide bandwidth
• Hi-fi for highest requirements



Impedance (Z)	8 Ω
Transmission method	-

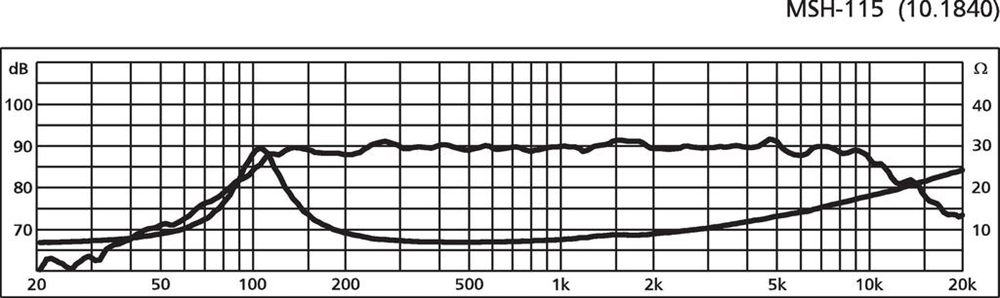

Frequency range	fx-10,000 Hz
Resonant frequency (fs)	85 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	300/5,000 Hz
Power rating	50 W
Peak music power output	120 W
Sensitivity	89 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.8 mm/N
Moving mass (Mms)	4.5 g
Mech. Q factor (Qms)	1.98
Electr. Q factor (Qes)	0.55
Total Q factor (Qts)	0.43
Equivalent volume (Vas)	4 l
DC resistance (Re)	6.3 Ω
Force factor (BxL)	4.8 Tm
Voice coil induct. (Le)	0.3 mH
Voice coil diameter	Ø 25 mm
Voice coil former	aluminium
Linear excursion (XMAX)	± 1.5 mm
Eff. cone area (Sd)	55 cm2
Magnet weight	230 g
Magnet diameter	Ø 72 mm
Mounting cutout	Ø 101 mm
Mounting depth	55 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-

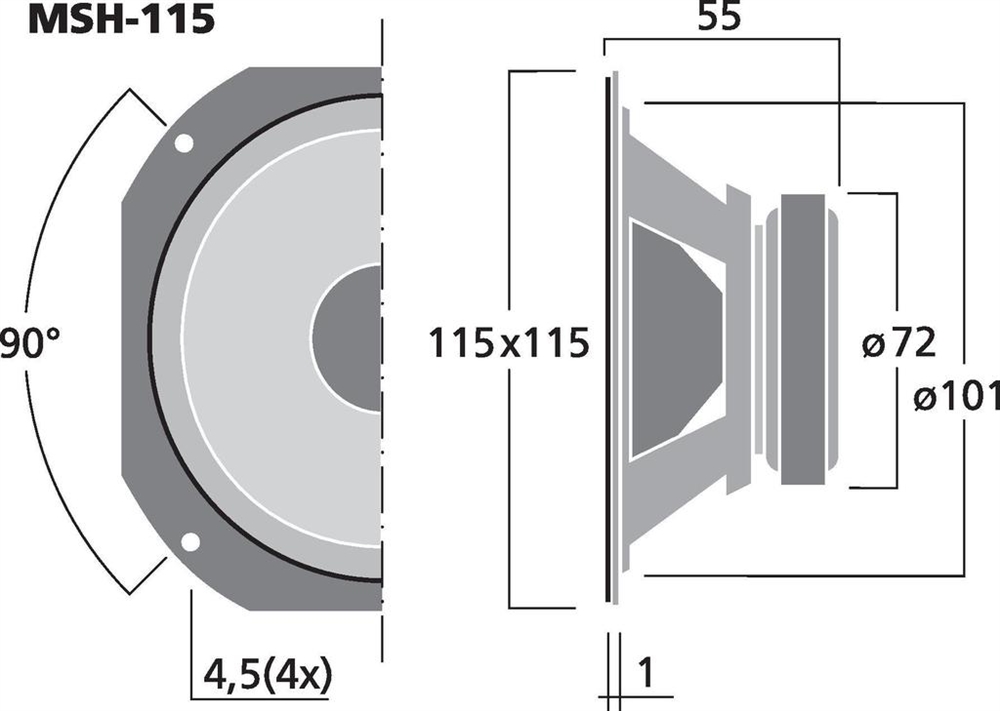

Dimensions	115 x 115 x 55 mm
Outside diameter	-
Width	115 mm
Height	115 mm
Depth	55 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	0.56 kg
Packing unit	1
Type of speaker	4"

Varenr.: 101840
