6 1/2'' højttaler - SPH-170C - NUMBER ONE

• På lager
• På lager, 2-4 dage
• Bedømmelse for 6 1/2'' højttaler - SPH-170C - NUMBER ONE

  Produktet er endnu ikke bedømt

•
  1.019,00DKK ved 1 stk.

Vis uden moms

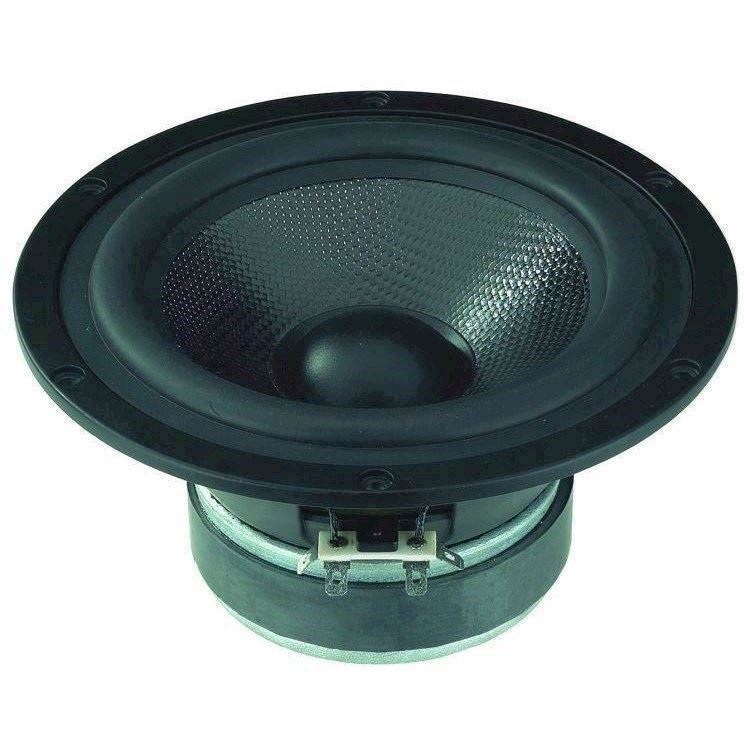

High-end bass-midrange speaker, 60 W, 8 Ω

• Cone with excellent damping
• Extra long excursion
• Low distortion
• Particularly natural reproduction
• Very low limit frequency
• Ideally suited as a bass-midrange speaker in 2-way combinations but only requires small volumes

HOBBY HiFi 02/2012
"Ideally suited for smaller bookshelf speaker systems. With the SPH-170C, MONACOR offers a bass-midrange speaker of very neat workmanship which impresses by a particularly high-quality design."



Impedance (Z)	8 Ω
Transmission method	-
Frequency range	f3-3,500 Hz
Resonant frequency (fs)	38 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	60 W
Peak music power output	120 W
Sensitivity	88 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	1.06 mm/N
Moving mass (Mms)	16.43 g
Mech. Q factor (Qms)	7.22
Electr. Q factor (Qes)	0.27
Total Q factor (Qts)	0.26
Equivalent volume (Vas)	24 l
DC resistance (Re)	6 Ω
Force factor (BxL)	9.44 Tm
Voice coil induct. (Le)	0.8 mH
Voice coil diameter	Ø 37 mm
Voice coil former	Kapton
Linear excursion (XMAX)	± 4 mm
Eff. cone area (Sd)	127 cm2
Magnet weight	600 g
Magnet diameter	Ø 100 mm
Mounting cutout	Ø 145 mm
Mounting depth	85 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-

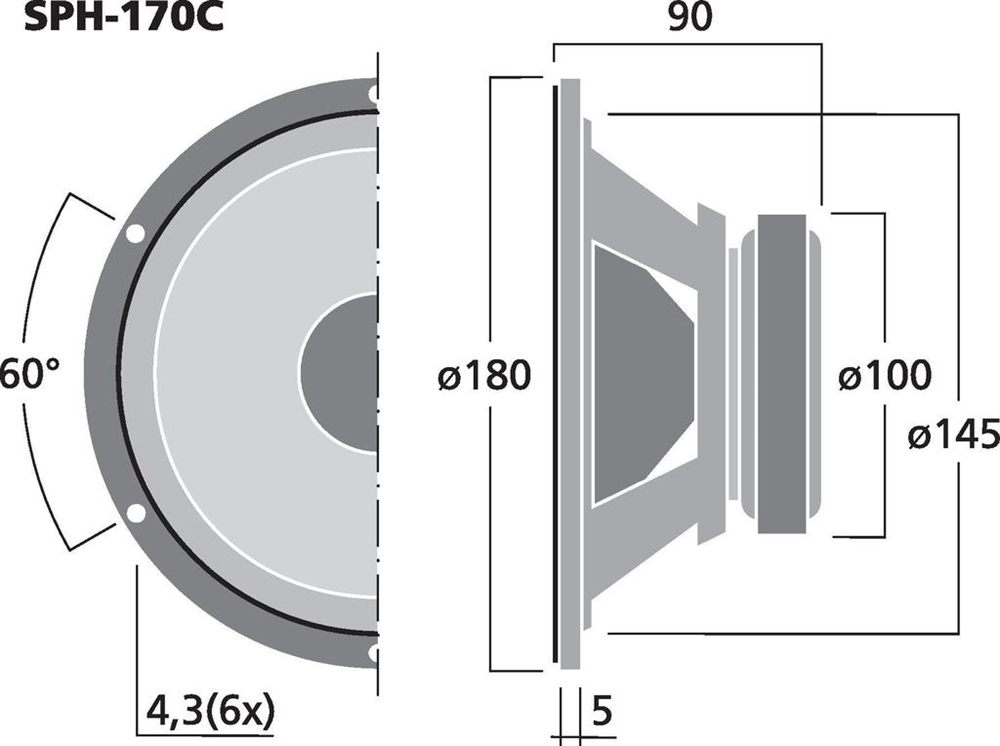

Dimensions	Ø 180 mm x 90 mm
Outside diameter	Ø 180 mm
Width	Ø 180 mm
Height	-
Depth	90 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	2 kg
Packing unit	1
Type of speaker	6.5"

Varenr.: 104120
