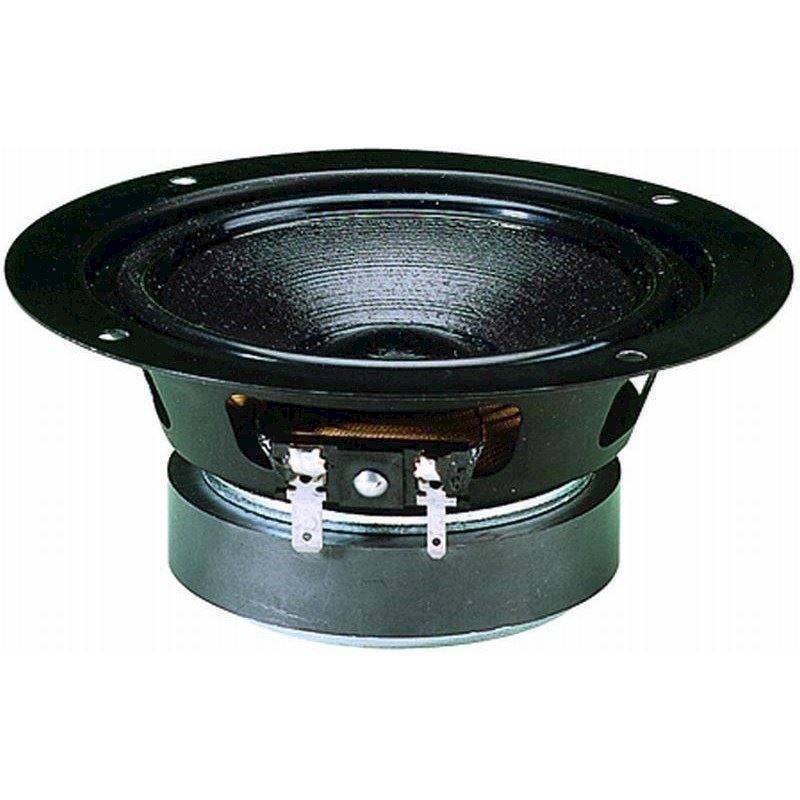

4'' mellemtone - MSH-116/4 - NUMBER ONE

• På lager
• På lager, 2-4 dage
• Bedømmelse for 4'' mellemtone - MSH-116/4 - NUMBER ONE

  Produktet er endnu ikke bedømt

•
  459,00DKK ved 1 stk.

Vis uden moms

Hi-fi midrange speaker, 40 W, 4 Ω

• High-end technology
• Coated special cone
• Dust cap with high damping
• Extra flat basket (no need for recessed installation)
• Best possible linearity
• Perfect mass-drive ratio with a wide bandwidth
• For a sound of the extra class

HOBBY HiFi 03/2015
"The MSH-116/4 impresses with a perfect sound, a surprisingly wide bandwidth and a high efficiency - a really great midrange speaker."



Impedance (Z)	4 Ω
Transmission method	-
Frequency range	fx-10,000 Hz
Resonant frequency (fs)	95 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	300/5,000 Hz
Power rating	40 W
Peak music power output	120 W
Sensitivity	91 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.62 mm/N
Moving mass (Mms)	4.6 g
Mech. Q factor (Qms)	2.38
Electr. Q factor (Qes)	0.48
Total Q factor (Qts)	0.40
Equivalent volume (Vas)	2.7 l
DC resistance (Re)	3.2 Ω
Force factor (BxL)	4.3 Tm
Voice coil induct. (Le)	0.18 mH
Voice coil diameter	25 mm
Voice coil former	aluminium
Linear excursion (XMAX)	± 1 mm
Eff. cone area (Sd)	55 cm2
Magnet weight	240 g
Magnet diameter	Ø 72 mm
Mounting cutout	Ø 101 mm
Mounting depth	54 mm
Mounting hole diameter	Ø 112 mm
Hole spacing X-axis	79 mm
Hole spacing Y-axis	79 mm

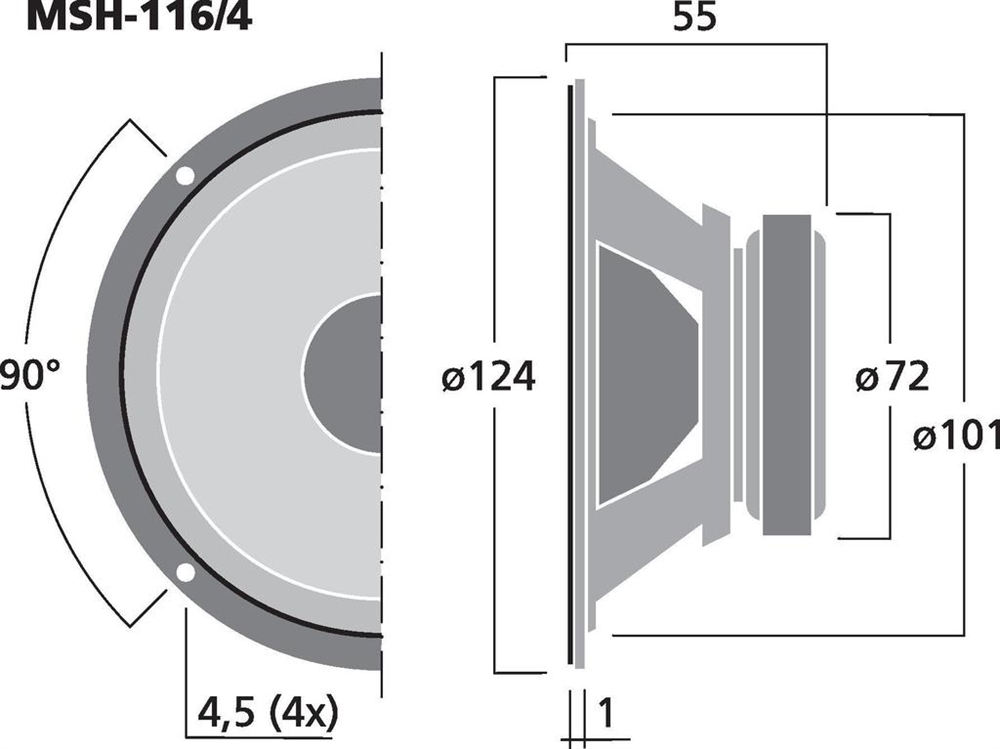

Dimensions	Ø 124 mm x 55 mm
Outside diameter	Ø 124 mm
Width	Ø 124 mm
Height	-
Depth	55 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	0.56 kg
Packing unit	1
Type of speaker	4"

Varenr.: 102150
