6 1/2'' højttaler - SP-6/150PA - IMG STAGE LINE

• På lager
• På lager, 2-4 dage
• Bedømmelse for 6 1/2'' højttaler - SP-6/150PA - IMG STAGE LINE

  Produktet er endnu ikke bedømt

•
  409,00DKK ved 1 stk.

Vis uden moms

Trustpilot

Spørg til denne vare

PA midrange speaker, 150 W, 8 Ω

• For PA midrange applications requiring a high power capability with simultaneous use of mid-high range horns
• Very well-suited for dual arrangements

Impedance (Z)	8 Ω
Transmission method	-
Frequency range	f3-6,000 Hz
Resonant frequency (fs)	73 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	150 W
Peak music power output	300 W
Sensitivity	93 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.31 mm/N
Moving mass (Mms)	15.2g
Mech. Q factor (Qms)	5.31
Electr. Q factor (Qes)	0.46
Total Q factor (Qts)	0.42
Equivalent volume (Vas)	8.5 l
DC resistance (Re)	6.5 Ω
Force factor (BxL)	9.9 Tm
Voice coil induct. (Le)	0.6 mH
Voice coil diameter	Ø 50 mm
Voice coil former	Kapton
Linear excursion (XMAX)	±1 mm
Eff. cone area (Sd)	139 cm2
Magnet weight	850 g
Magnet diameter	Ø 120 mm
Mounting cutout	Ø 148 mm
Mounting depth	79 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-

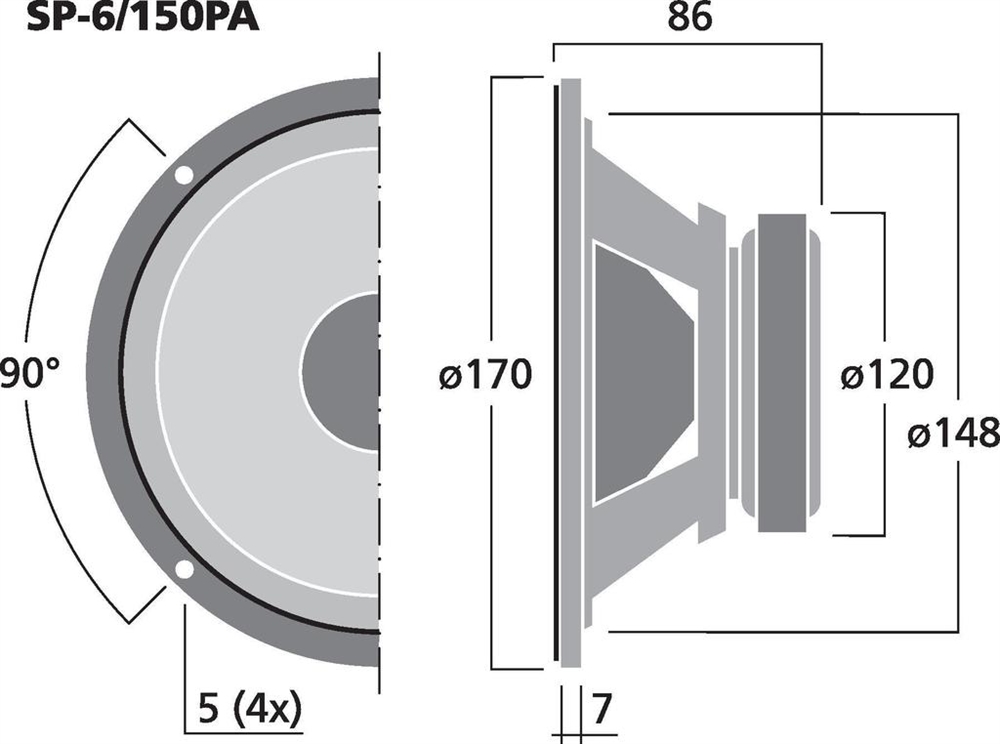

Dimensions	Ø 170 mm x 86 mm
Outside diameter	Ø 170 mm
Width	Ø 170 mm
Height	-
Depth	86 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	2.16 kg
Packing unit	1
Type of speaker	6.5"

Varenr.: 103180
