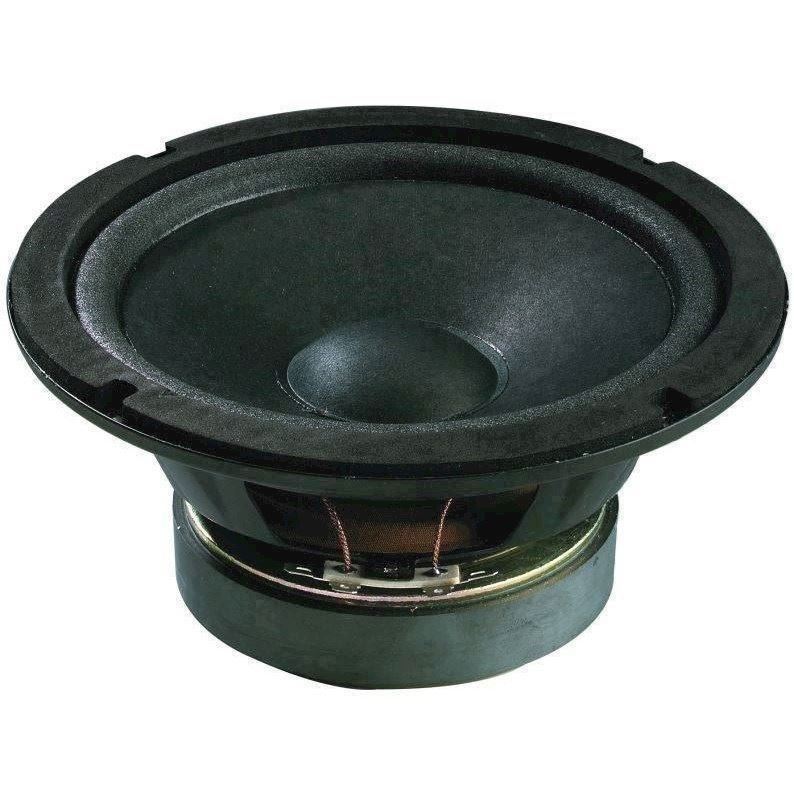

6 1/2'' højttaler - SP-17/4 - MONACOR

6 1/2\'\' højttaler - SP-17/4 - MONACOR
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for 6 1/2'' højttaler - SP-17/4 - MONACOR
    Produktet er endnu ikke bedømt
  •
    309,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




Universal speaker, 30 W, 4 Ω
  • For general applications and replacement purposes
  • High power capability
  • To be used in the bass-midrange


Impedance (Z)4 Ω
Transmission method-
Frequency rangef3-6,000 Hz
Resonant frequency (fs)-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating30 W
Peak music power output60 W
Sensitivity-
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-

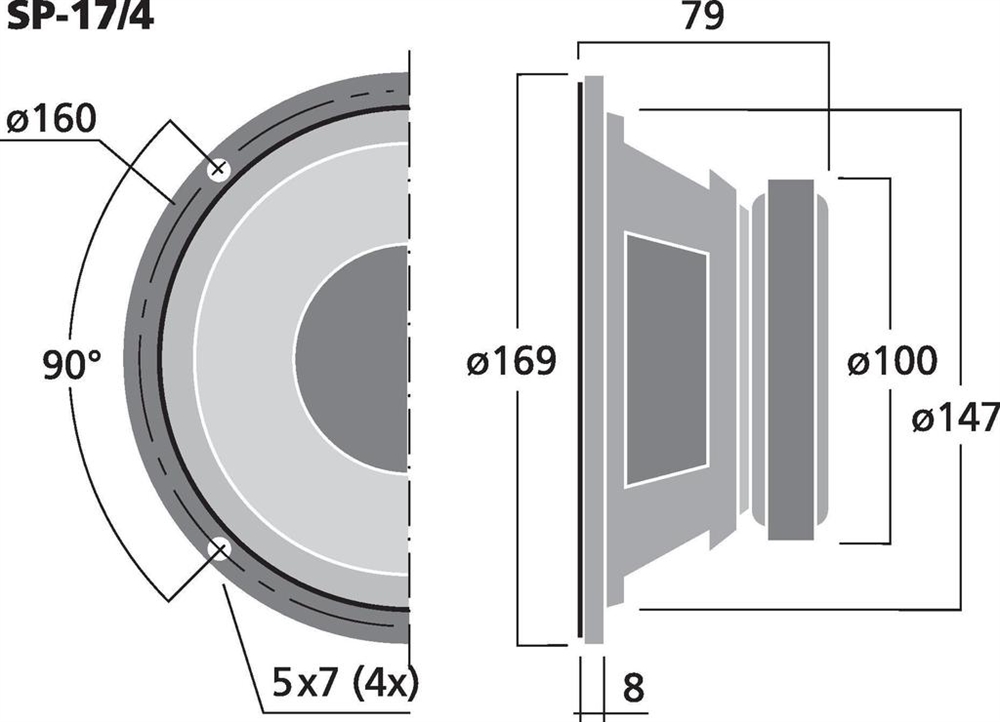

Magnet diameterØ 100 mm
Mounting cutoutØ 147 mm
Mounting depth71 mm
Mounting hole diameterØ 160 mm
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 169 mm x 79 mm
Outside diameterØ 169 mm
WidthØ 169 mm
Height-
Depth79 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight1.086 kg
Packing unit1
Type of speaker6.5"

Varenr.: 103680
