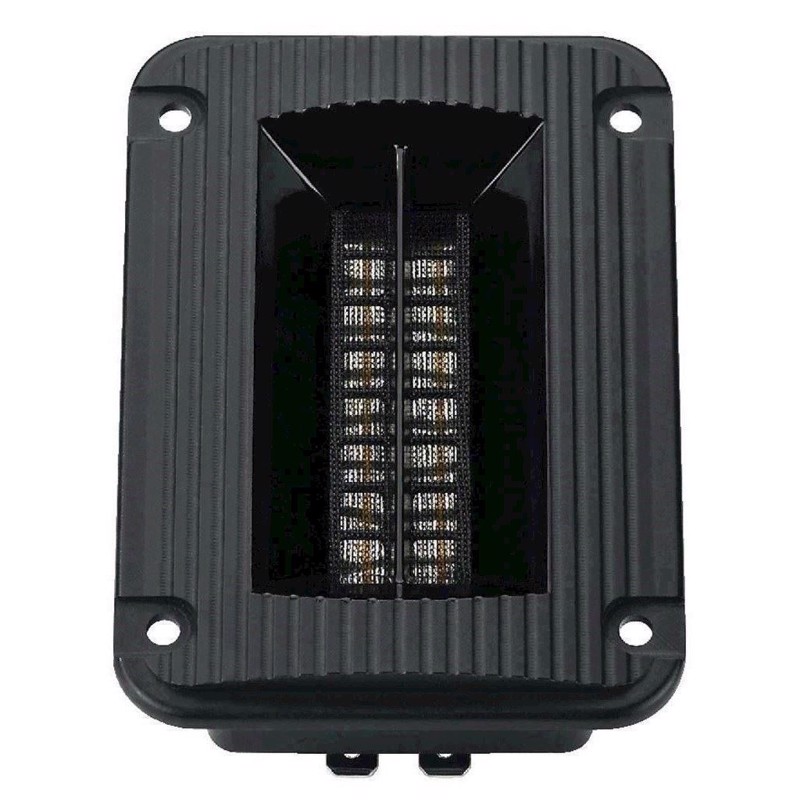

Bånddiskant - RBT-95SR - MONACOR

Bånddiskant - RBT-95SR - MONACOR
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for Bånddiskant - RBT-95SR - MONACOR
    Produktet er endnu ikke bedømt
  •
    569,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

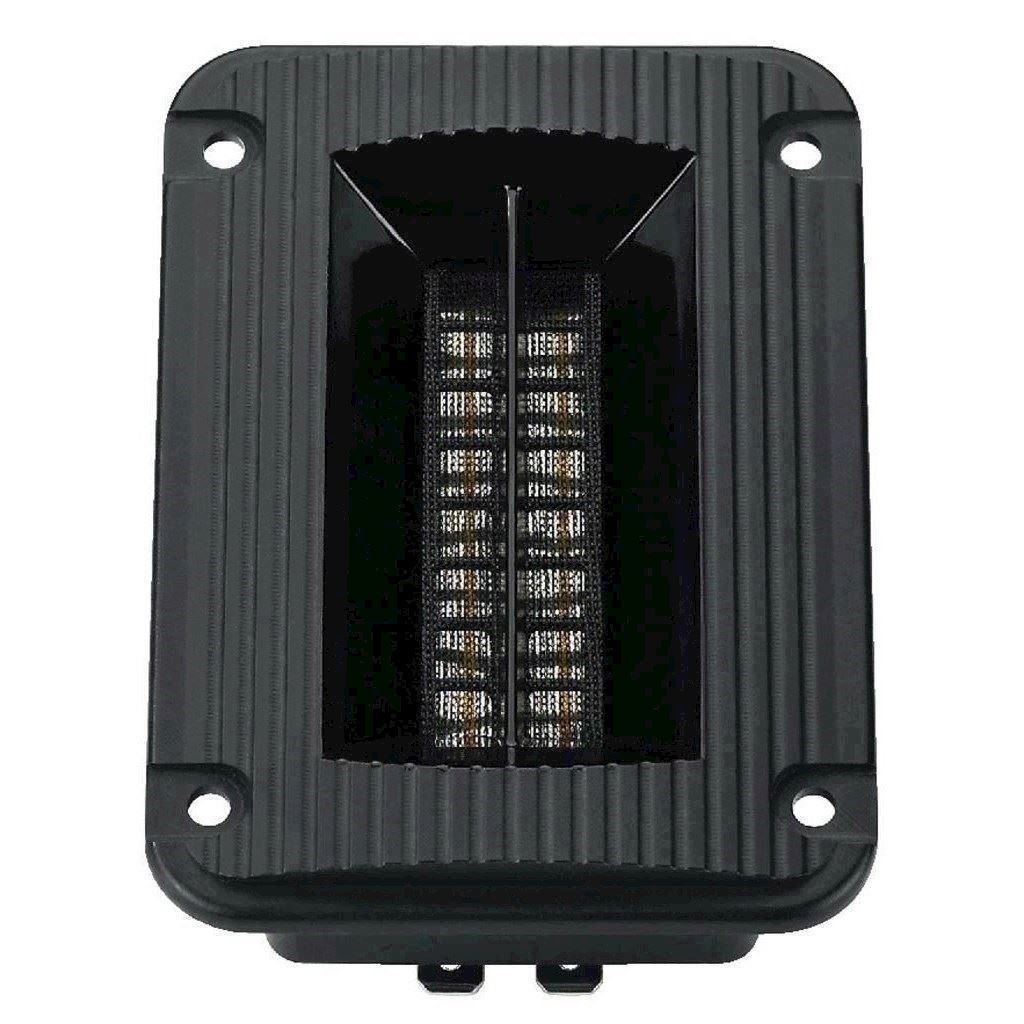

Ribbon tweeter, 8Ω, 70WMAX, 40WRMS
Magnetostatiske højttalere med horn frontudstyr
Sammenlignet med RBT-95 og RBT-95SQ, øget magt evne


Ribbon tweeter, 40 W, 8 Ω
  • Magnetostatic speaker with horn front attachment
  • Compared with RBT-95 and RBT-95SQ, increased power capability
  • Neodymium magnet system
  • Fine and brilliant reproduction of the high range, high efficiency
  • Ideally suited for 3-way speaker systems, 4-way speaker systems or for adding tweeters to full range speakers
  • Longitudinally grooved, slightly convex plastic front panel
HOBBY HiFi 03/2013
"With the RBT-95SR, MONACOR offers a magnetostatic tweeter at a very attractive price which ensures an excellent reproduction of the highest frequencies ... provides a very clean frequency response of high linearity which almost reaches 20 kHz."

Klang+Ton 02/2013

SPH-10M, MSH-115HQ, RBT-95SR and SAM-2 in the building concept 2DOT1
"A system of appealing design which provides an equally nice sound ... the speaker building concept features an amazing adaptability and almost unlimited settings ... incredibly suitable for everyday use, is capable of reproducing any kind of music and suitable for home cinema systems. The system provided an absolutely amazing sound when tested in the audio room. The small speakers appeared to reproduce the complete bass range. There was no way of locating the subwoofer. The tactics with the tiles achieved great results ... nothing trembles, even though a powerful bass speaker of a high power capability is set-up in the room. The satellites provide an extra light and high-resolution sound."


Impedance (Z)8 Ω
Transmission method-

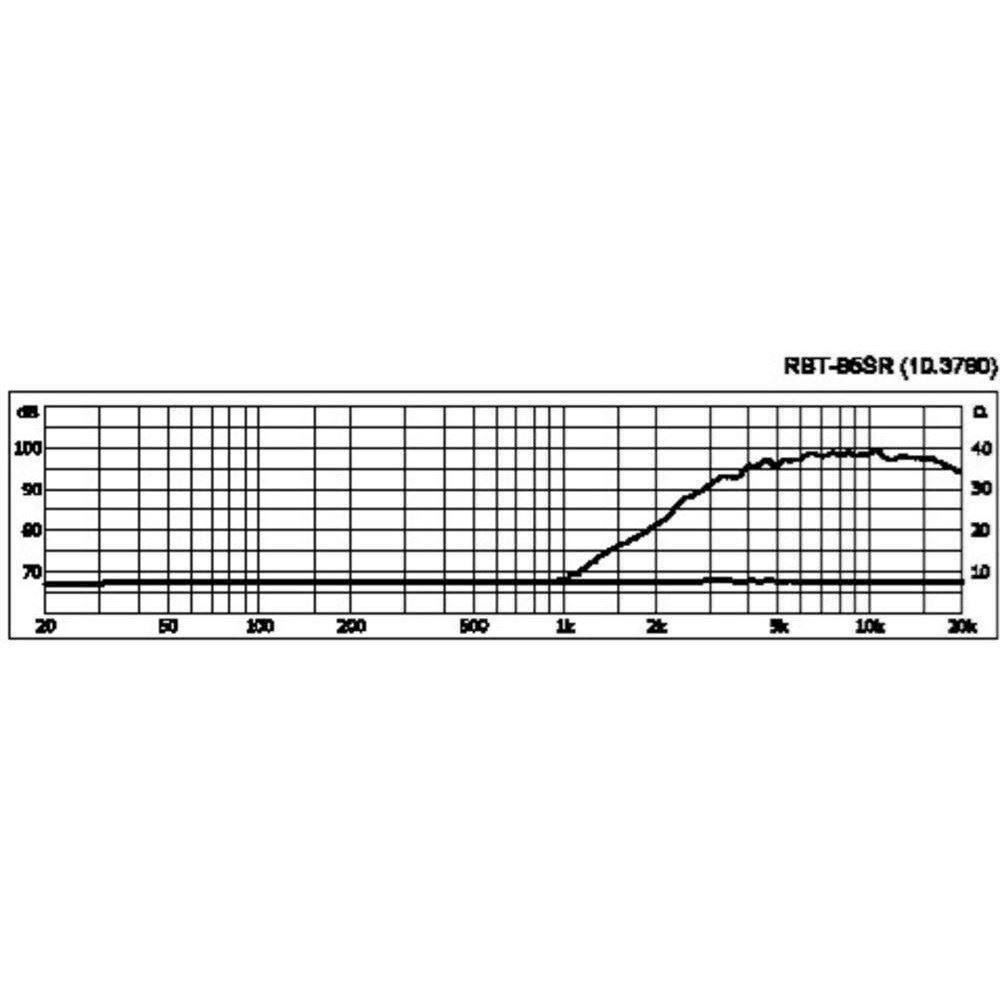

Frequency rangefx-22,000 Hz
Resonant frequency (fs)3,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)5,000 Hz
Power rating40 W
Peak music power output70 W
Sensitivity98 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diametermagnetostatic speaker

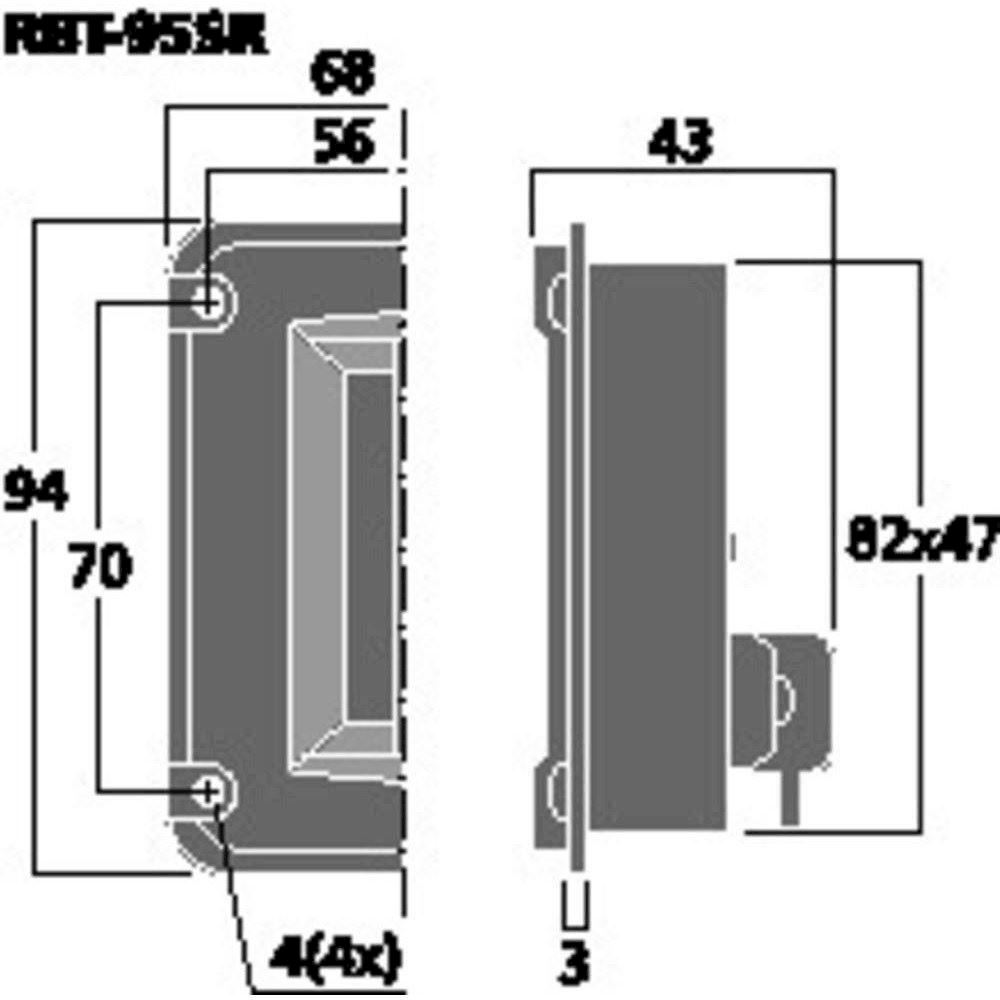

Mounting cutout82 x 47 mm
Mounting depth43 mm
Mounting hole diameter-
Hole spacing X-axis70 mm
Hole spacing Y-axis56 mm
Dimensions68 x 95 x 43 mm
Outside diameter-
Width68 mm
Height95 mm
Depth43 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight177 g
Packing unit1
Type of speaker-


Varenr.: 103790
