ELA-højttaler hvid - EDL-82/WS - MONACOR

• På lager
• På lager, 2-4 dage
• Bedømmelse for ELA-højttaler hvid - EDL-82/WS - MONACOR

  Produktet er endnu ikke bedømt

•
  379,00DKK ved 1 stk.

Vis uden moms

Trustpilot

Spørg til denne vare

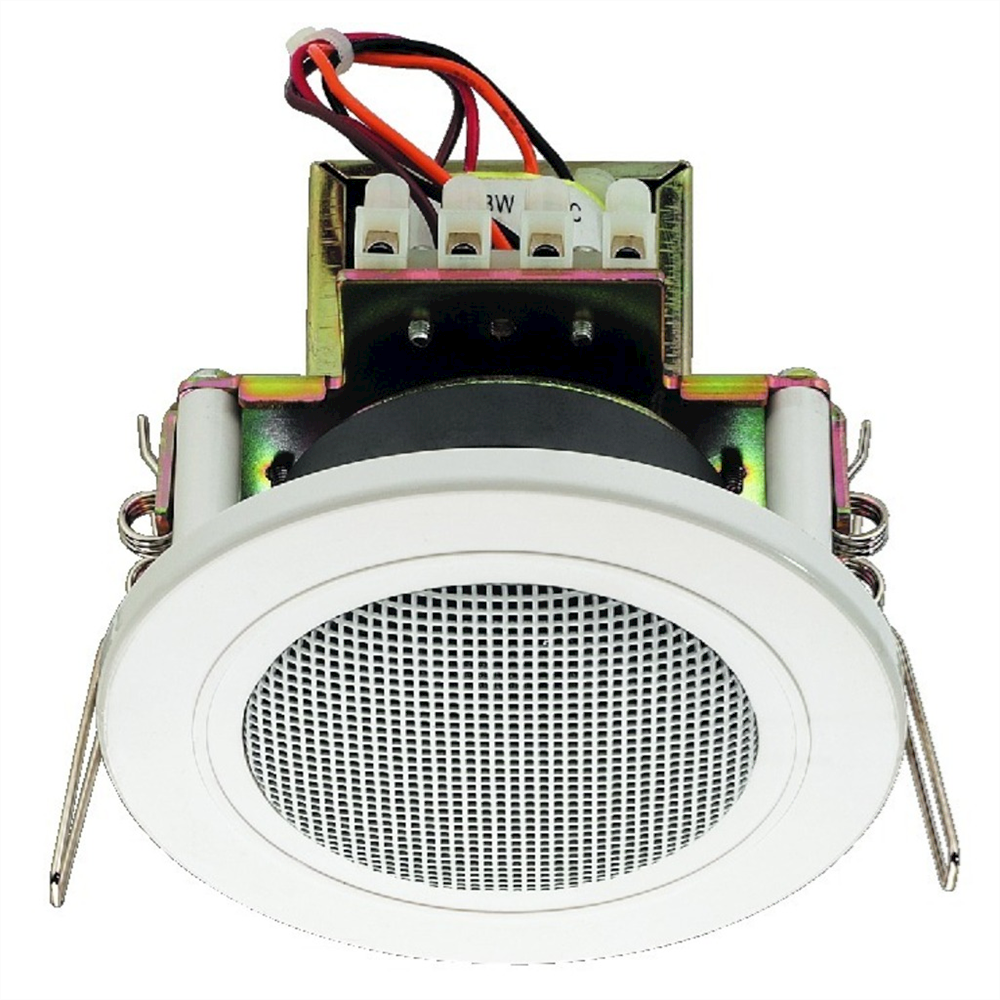

PA ceiling speaker

• 100 V line technique
• White cover
• Similar design to standard flush-mounted halogen lights
• Suitable for speech and background music, very consistent frequency response
• Quick-mounting facility
• Plastic housing with protective metal grille
• ABS plastic material, self-extinguishing according to UL 94V-0
• For a ceiling thickness from 2 to 14 mm

Impedance (Z)	-
Transmission method	100 V
Frequency range	200-20,000 Hz
Resonant frequency (fs)	-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	6/3/1.5 W
Peak music power output	-
Sensitivity	86 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	-
Moving mass (Mms)	-
Mech. Q factor (Qms)	-
Electr. Q factor (Qes)	-
Total Q factor (Qts)	-
Equivalent volume (Vas)	-
DC resistance (Re)	-
Force factor (BxL)	-
Voice coil induct. (Le)	-
Voice coil diameter	-
Voice coil former	-
Linear excursion (XMAX)	-
Eff. cone area (Sd)	-
Magnet weight	-
Magnet diameter	-
Mounting cutout	Ø 96 mm
Mounting depth	98 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-
Dimensions	Ø 100 mm x 93 mm
Outside diameter	Ø 100 mm
Width	Ø 100 mm
Height	-
Depth	93 mm
Protective class	-
Admiss. ambient temp.	-
Weight	635 g
Packing unit	1
Type of speaker	75

Varenr.: 161490
