Channels | 5 |
Zones | - |
Power rating | 120 W |
Power rating at 2 Ω | - |
Power rating at 4 Ω | 120 W |
Power rating at 8 Ω | - |
Power rating at 100 V | 120 W |
Power rating with 4 Ω bridged operation | - |
Power rating with 8 Ω bridged operation | - |
Peak music power output (PMAX) | 160 W |
Output impedance | 4 Ω |
Inputs | 3 mV (mic), 200 mV (line), 140 mV (aux) |
Attenuation factor | - |
Frequency range | 50-15,000 Hz, ±3 dB |
Crossover network | - |
Crossover frequency | - |
Integrated limiter | - |
Equalizer bass | ± 10 dB/100 Hz |
Equalizer midrange | - |
Equalizer treble | ± 10 dB/10 kHz |
S/N ratio | > 80 dB |
Crosstalk attenuation | - |
THD | < 0.5% |
Power supply | ∼ 230 V/50 Hz/300 VA, DC current 24 V/9 A |
Mains voltage | ∼ 230 V |
Mains frequency | 50 Hz |
Power consumption, operation | 300 VA |
Power consumption, standby | - |
Standby current | - |
Operating voltage (possible alternative) | DC current 24 V |
Power supply (possible alternative) | DC current 9 A |
Admiss. ambient temp. | 0-40 °C |
Dimensions | 482 x 88 x 275 mm, 2 RS |
Width | 482 mm |
Height | 88 mm |
Depth | 275 mm |
Rack spaces, RS | 2 |
Weight | 9.9 kg |

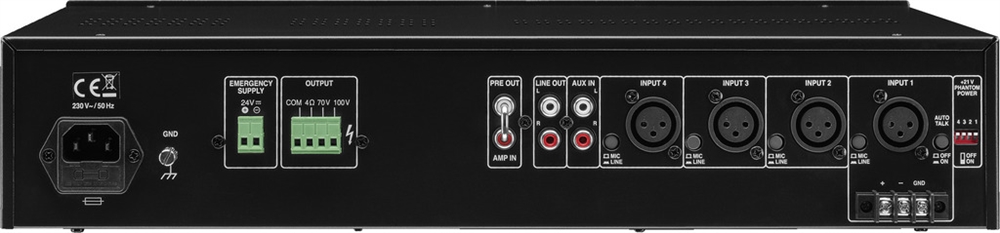

Connections | 4 x XLR (mic/line), 1 x RCA L/R (aux), screw terminals (speakers) |
