| Impedance (Z) | - |
| Transmission method | 100 V |
| Frequency range | 55-20,000 Hz |
| Resonant frequency (fs) | - |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating | 15/7.5/4/2/1 W |
| Peak music power output | - |
| Sensitivity | 87 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |

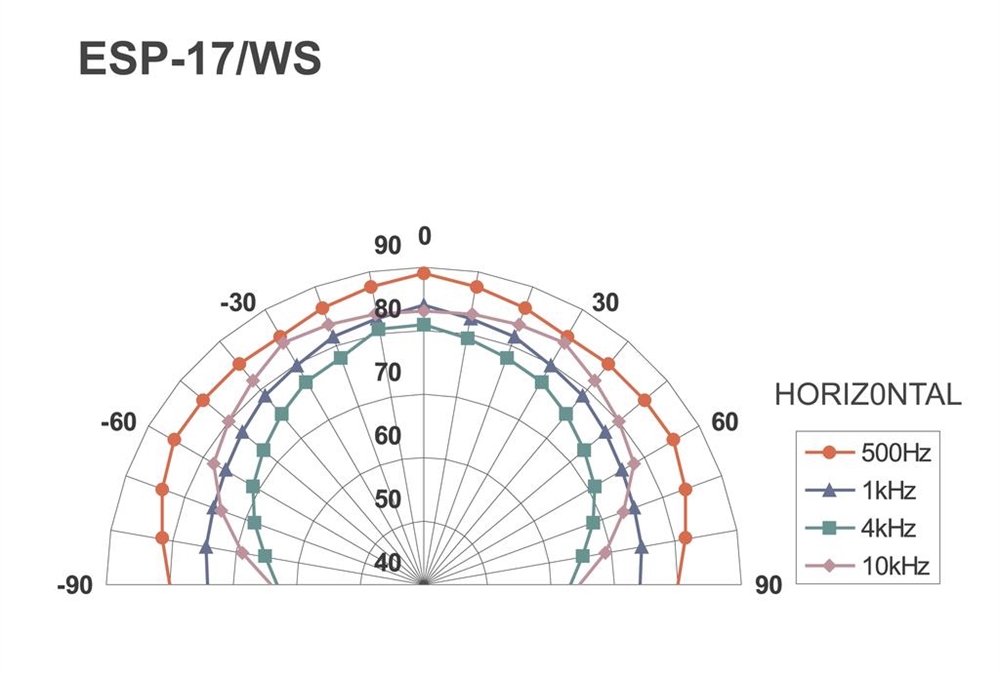

| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | - |
| Moving mass (Mms) | - |
| Mech. Q factor (Qms) | - |
| Electr. Q factor (Qes) | - |
| Total Q factor (Qts) | - |
| Equivalent volume (Vas) | - |
| DC resistance (Re) | - |
| Force factor (BxL) | - |
| Voice coil induct. (Le) | - |
| Voice coil diameter | - |
| Voice coil former | - |
| Linear excursion (XMAX) | - |
| Eff. cone area (Sd) | - |
| Magnet weight | - |
| Magnet diameter | - |

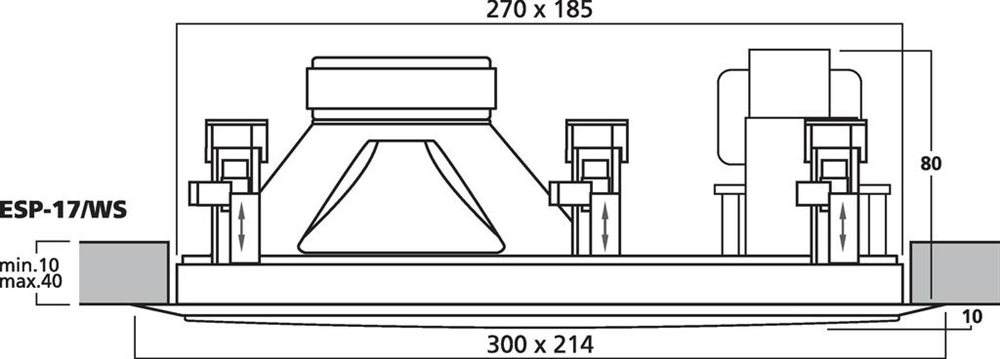

| Mounting cutout | 270 x 185 mm |
| Mounting depth | 80 mm |
| Mounting hole diameter | - |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |
| Dimensions | 300 x 214 x 90 mm |
| Outside diameter | - |
| Width | 300 mm |
| Height | 214 mm |
| Depth | 90 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.9 kg |
| Packing unit | - |
| Type of speaker | 130 |
