Impedance (Z) | - |
Transmission method | 100 V |
Frequency range | 60-20,000 Hz |
Resonant frequency (fs) | - |
Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
Power rating | 10/5/2.5 W |
Peak music power output | - |
Sensitivity | 97 dB/W/m |
Max. rated SPL | - |
Max. voltage | - |
Radiation angle, horizontal | - |
Radiation angle, vertical | - |
Suspension compl. (Cms) | - |
Moving mass (Mms) | - |
Mech. Q factor (Qms) | - |
Electr. Q factor (Qes) | - |
Total Q factor (Qts) | - |
Equivalent volume (Vas) | - |
DC resistance (Re) | - |
Force factor (BxL) | - |
Voice coil induct. (Le) | - |
Voice coil diameter | - |
Voice coil former | - |
Linear excursion (XMAX) | - |
Eff. cone area (Sd) | - |
Magnet weight | - |
Magnet diameter | - |

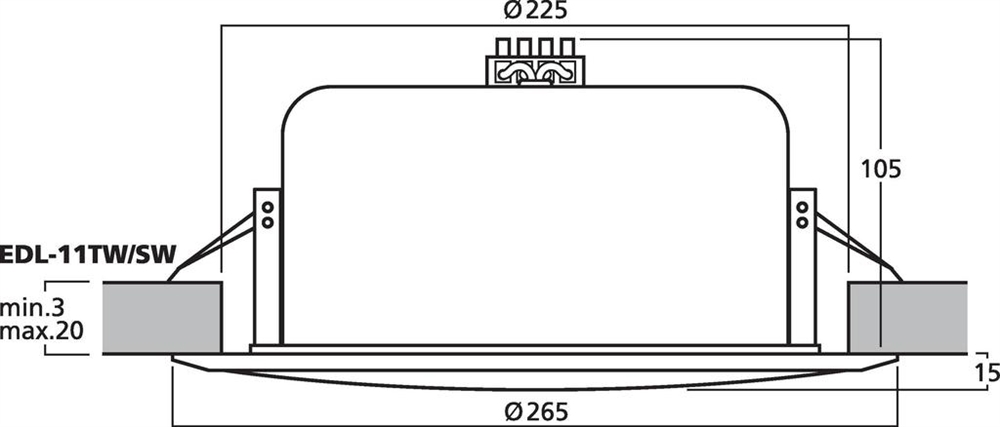

Mounting cutout | Ø 225 mm x 110 mm |
Mounting depth | 105 mm |
Mounting hole diameter | - |
Hole spacing X-axis | - |
Hole spacing Y-axis | - |
Dimensions | Ø 264 mm x 120 mm |
Outside diameter | Ø 264 mm |
Width | Ø 264 mm |
Height | - |
Depth | 120 mm |
Protective class | - |
Admiss. ambient temp. | - |
Weight | 1.6 kg |
Packing unit | - |
Type of speaker | 200 |
