Channels | 2 |
Zones | - |
Power rating | 25 W |
Power rating at 2 Ω | - |
Power rating at 4 Ω | 2 x 12.5 W |
Power rating at 8 Ω | 2 x 10 W |
Power rating at 100 V | - |
Power rating with 4 Ω bridged operation | - |
Power rating with 8 Ω bridged operation | - |
Peak music power output (PMAX) | 2 x 25 W |
Output impedance | - |
Inputs | 115 mV/12 kΩ (PC), 115 mV/12 kΩ (CD), 115 mV/12 kΩ (aux), 115 mV/12 kΩ (player, high), 20 mV/32 kΩ (player, low) |
Attenuation factor | - |
Frequency range | 20-20,000 Hz |
Crossover network | - |
Crossover frequency | - |
Integrated limiter | - |
Equalizer bass | ± 12 dB |
Equalizer midrange | - |
Equalizer treble | ± 12 dB |
S/N ratio | > 65 dB |
Crosstalk attenuation | - |
THD | - |
Power supply | ∼ 230 V/50 Hz/50 VA |
Mains voltage | - |
Mains frequency | 50 Hz |
Power consumption, operation | 50 VA |
Power consumption, standby | - |
Standby current | - |
Operating voltage (possible alternative) | - |
Power supply (possible alternative) | - |
Admiss. ambient temp. | 0-40 °C |
Dimensions | 212 x 56 x 200 mm |
Width | 212 mm |
Height | 56 mm |
Depth | 200 mm |
Rack spaces, RS | - |
Weight | 1.8 kg |

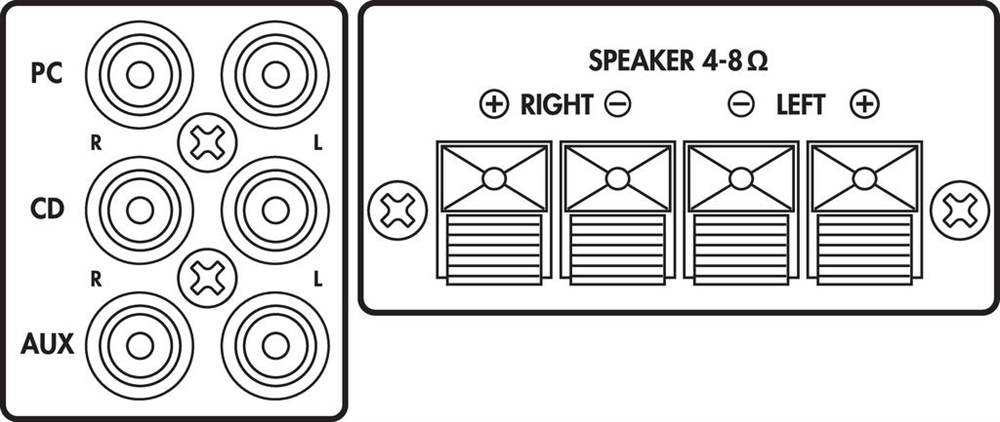

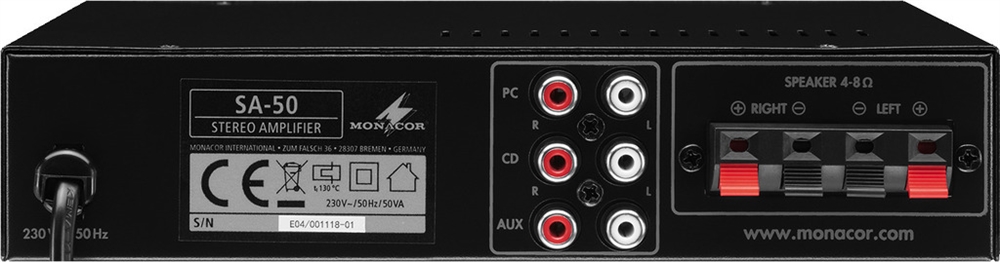

Connections | 1 x RCA L/R (PC), 1 x RCA L/R (CD), 1 x RCA L/R (aux), 1 x 3.5 mm jack (player), 4 x spring-load. speaker term. (speakers) |
