| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| Protection class: | Protection class I |
| Power connection: | Power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >92 dB line
>65 dB Microphone |
| THD: | Line <0,9 % at 1 kHz |
| Gain: | Mic/line 18 dB |
| Housing color: | Black |
| Control elements: | Groundlift selector |
| Status LED: | Power, master level meter, signal, clip |

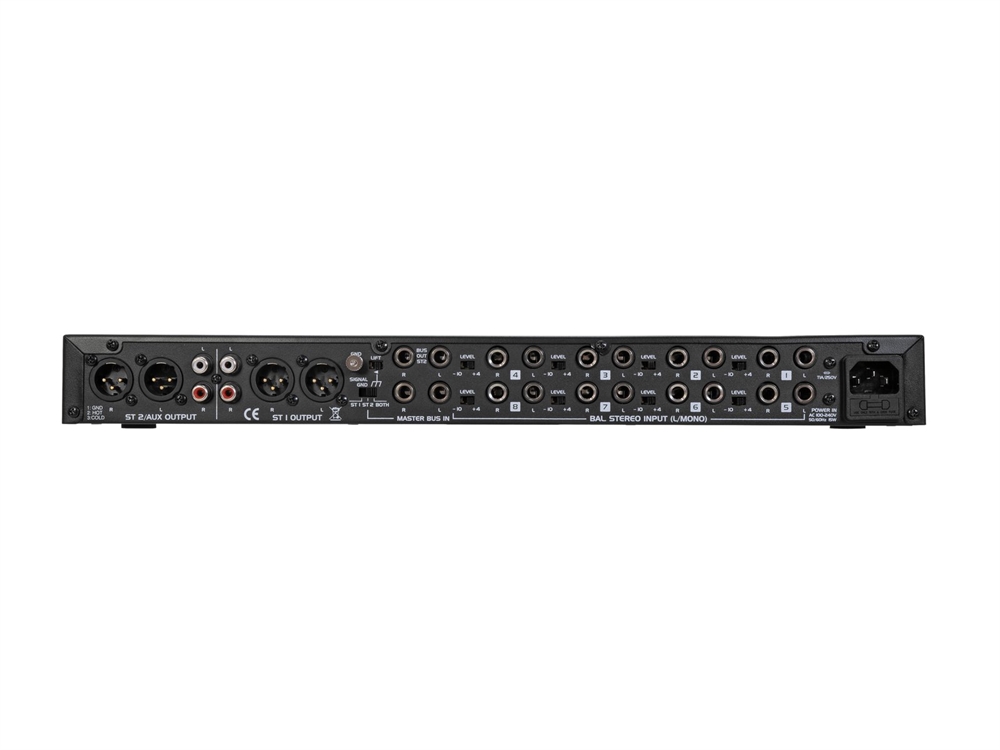

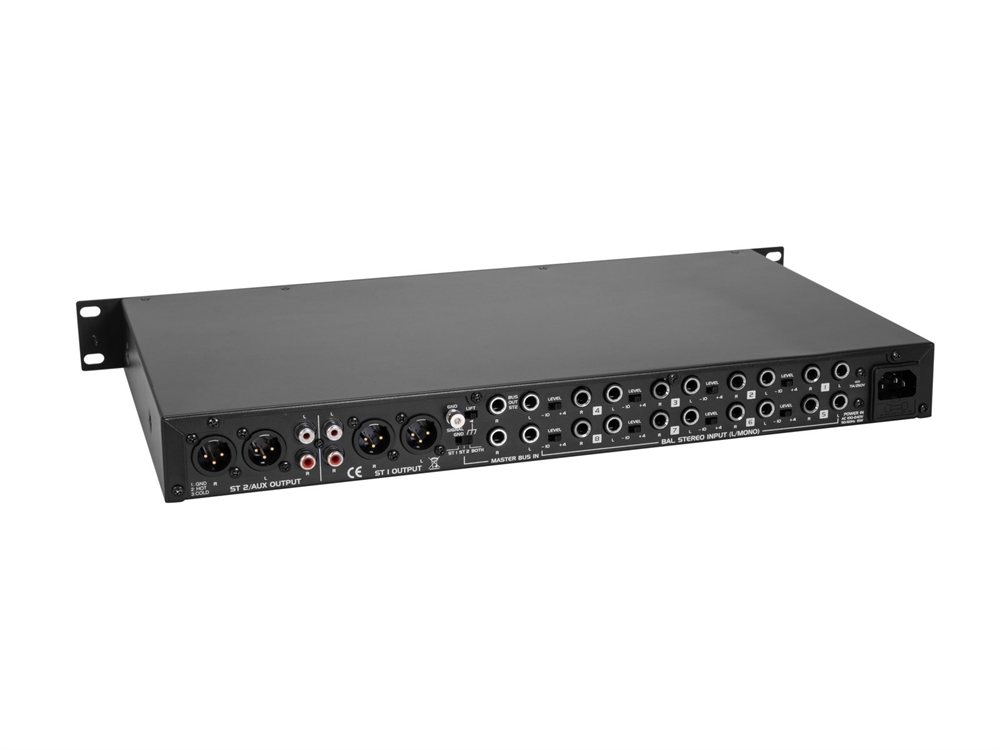

| Connections: | Input: line via 8 x 6.3-mm-jack (bal.)
Input: Microphone via 1 x 3-pin XLR
Output: master via 2 x 6.3-mm-jack (bal.)
Output: AUX via 1 x 6.3-mm-jack (bal.)
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Output: headphones via 1 x 3.5 mm jack (stereo) mounting version |
| Channels: | Input chanel: 1 x mono + stereo with Mic-line switch via XLR or jack, channel control via Rotary dial, pre-post switch, gain control,
Input chanel: 7 x stereo via Jack, channel control via Rotary dial, pre-post switch,
Master bus input: 2 x stereo via Jack, Routing master bus switch,
Master output: 2 x mono + stereo via XLR or RCA, channel control via Rotary dial, stereo/mono switch,
Master bus output: 1 x stereo via Jack
Headphones output: 1 x stereo via Jack, channel control via Rotary dial, Routing master bus switch, |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm
Depth: 28,0 cm
Height: 4,4 cm |
| Weight: | 3,00 kg |
