Channels | 5 |
Zones | 5 |
Power rating | 120 W |
Power rating at 2 Ω | - |
Power rating at 4 Ω | - |
Power rating at 8 Ω | - |
Power rating at 100 V | - |
Power rating with 4 Ω bridged operation | - |
Power rating with 8 Ω bridged operation | - |
Peak music power output (PMAX) | 170 W |
Output impedance | - |
Inputs | 2.5 mV/5 kΩ, 0.3 V/5 kΩ (mic/line), 0.3 V/15 kΩ (line), 0.775 V/10 kΩ (preamplifier) |
Attenuation factor | - |
Frequency range | 55-16,000 Hz |
Crossover network | - |
Crossover frequency | - |
Integrated limiter | - |
Equalizer bass | ± 10 dB/100 Hz |
Equalizer midrange | - |
Equalizer treble | ± 10 dB/10 kHz |
S/N ratio | > 70 dBA (mic), > 80 dBA (line) |
Crosstalk attenuation | - |
THD | < 1% |
Power supply | ∼ 230 V/50 Hz/340 VA, DC current 24 V/15 A |
Mains voltage | ∼ 230 V |
Mains frequency | 50 Hz |
Power consumption, operation | 340 VA |
Power consumption, standby | - |
Standby current | - |
Operating voltage (possible alternative) | DC current 24 V |
Power supply (possible alternative) | DC current 15 A |
Admiss. ambient temp. | 0-40 °C |
Dimensions | 482 x 133 x 352 mm, 3 RS |
Width | 482 mm |
Height | 133 mm |
Depth | 352 mm |
Rack spaces, RS | 3 |
Weight | 13 kg |

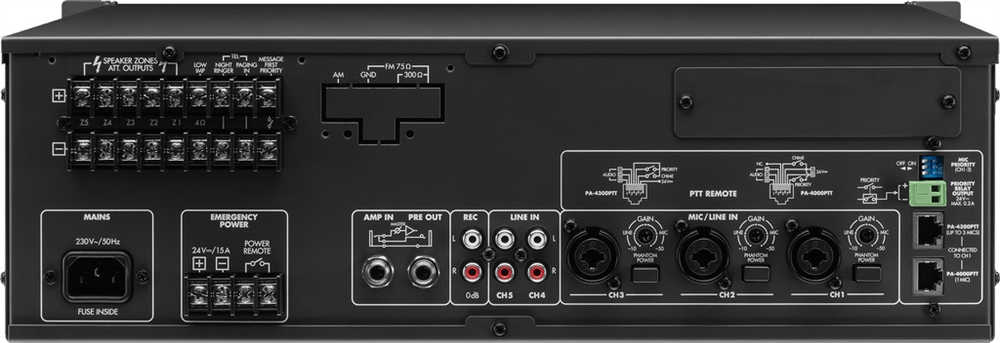

Connections | 3 x combo 6.3 mm/XLR (mic/line inputs), 2 x RCA L/R (line inputs), 2 x RJ45 (push-to-talk mic), screw terminals (telephone system), 1 x 6.3 mm jack (preamplifier), 1 x 6.3 mm jack (ext. amplifier), 1 x RCA L/R (record), screw terminals (speakers) |
