Channels | 5 |
Zones | 4 |
Power rating | 4 x 40 W |
Power rating at 2 Ω | - |
Power rating at 4 Ω | - |
Power rating at 8 Ω | - |
Power rating at 100 V | - |
Power rating with 4 Ω bridged operation | - |
Power rating with 8 Ω bridged operation | - |
Peak music power output (PMAX) | 4 x 65 W |
Output impedance | - |
Inputs | 5 mV/4 kΩ, 100 mV/10 kΩ (mic/line), 100 mV/30 kΩ (line) |
Attenuation factor | - |
Frequency range | 50-17,000 Hz |
Crossover network | - |
Crossover frequency | - |
Integrated limiter | yes |
Equalizer bass | ± 10 dB/100 Hz |
Equalizer midrange | - |
Equalizer treble | ± 10 dB/10 kHz |
S/N ratio | > 65 dB (mic), > 75 dB (line) |
Crosstalk attenuation | - |
THD | < 1% |
Power supply | ∼ 230 V/50 Hz/450 VA |
Mains voltage | ∼ 230 V |
Mains frequency | 50 Hz |
Power consumption, operation | 450 VA |
Power consumption, standby | - |
Standby current | - |
Operating voltage (possible alternative) | - |
Power supply (possible alternative) | - |
Admiss. ambient temp. | 0-40 °C |
Dimensions | 482 x 133 x 310 mm, 3 RS |
Width | 482 mm |
Height | 133 mm |
Depth | 310 mm |
Rack spaces, RS | 3 |
Weight | 15 kg |

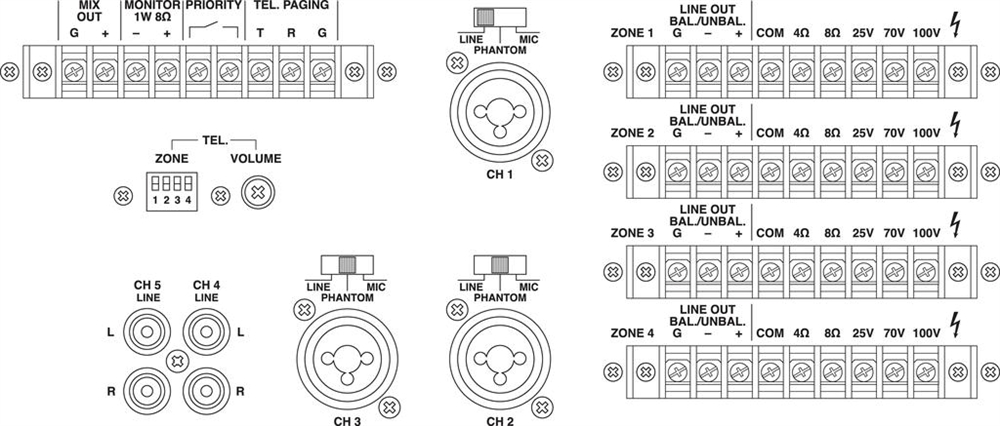

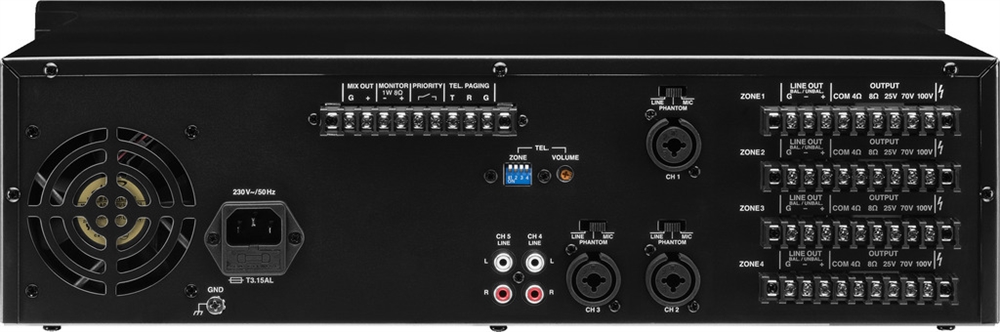

Connections | 3 x combo 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), screw terminal (speaker zone), screw terminal (speaker monitor), screw terminal (mix out), screw terminal (paging), screw terminal (priority) 3.5 mm stereo jack (headphones) |
