| Impedance (Z) | > 1,000 Ω |
| Transmission method | - |
| Frequency range | 3,000-20,000 Hz |
| Resonant frequency (fs) | - |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating | - |
| Peak music power output | 225 W (8 Ω system)
115 W (4 Ω system) |
| Sensitivity | 92 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | ∼ 30 V |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | - |
| Moving mass (Mms) | - |
| Mech. Q factor (Qms) | - |
| Electr. Q factor (Qes) | - |
| Total Q factor (Qts) | - |
| Equivalent volume (Vas) | - |
| DC resistance (Re) | - |
| Force factor (BxL) | - |
| Voice coil induct. (Le) | - |
| Voice coil diameter | - |
| Voice coil former | - |
| Linear excursion (XMAX) | - |
| Eff. cone area (Sd) | - |
| Magnet weight | - |
| Magnet diameter | - |

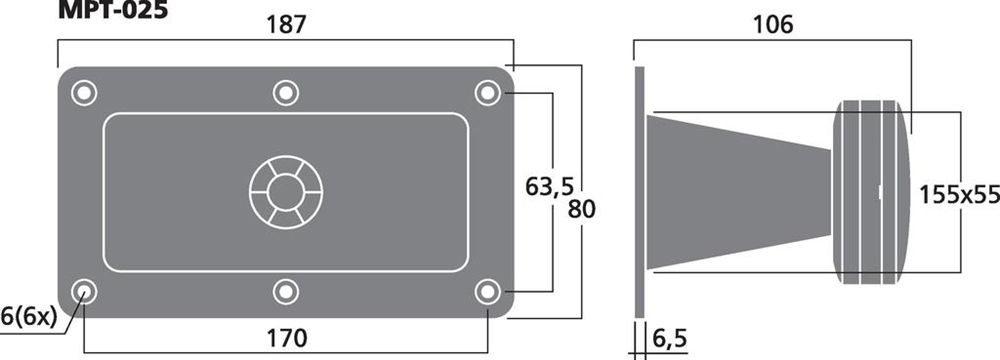

| Mounting cutout | 155 x 55 mm |
| Mounting depth | 100 mm |
| Mounting hole diameter | 63.5 mm |
| Hole spacing X-axis | 170 mm |
| Hole spacing Y-axis | - |
| Dimensions | 187 x 80 x 106 mm |
| Outside diameter | - |
| Width | 187 mm |
| Height | 80 mm |
| Depth | 106 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 94 g |
| Packing unit | 1 |
| Type of speaker | - |
