Piezohorn - MPT-005 - IMG STAGE LINE

Piezohorn - MPT-005 - IMG STAGE LINE
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for Piezohorn - MPT-005 - IMG STAGE LINE
    Bedømmelse: 4 ud af 5 baseret på 1 stemmer
  •
    124,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




Piezo tweeter


Impedance (Z)> 1,000 Ω
Transmission method-
Frequency range4,000-20,000 Hz
Resonant frequency (fs)-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating-
Peak music power output225 W (8 Ω system)
115 W (4 Ω system)
Sensitivity94 dB/W/m
Max. rated SPL-
Max. voltage∼ 30 V
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameter-

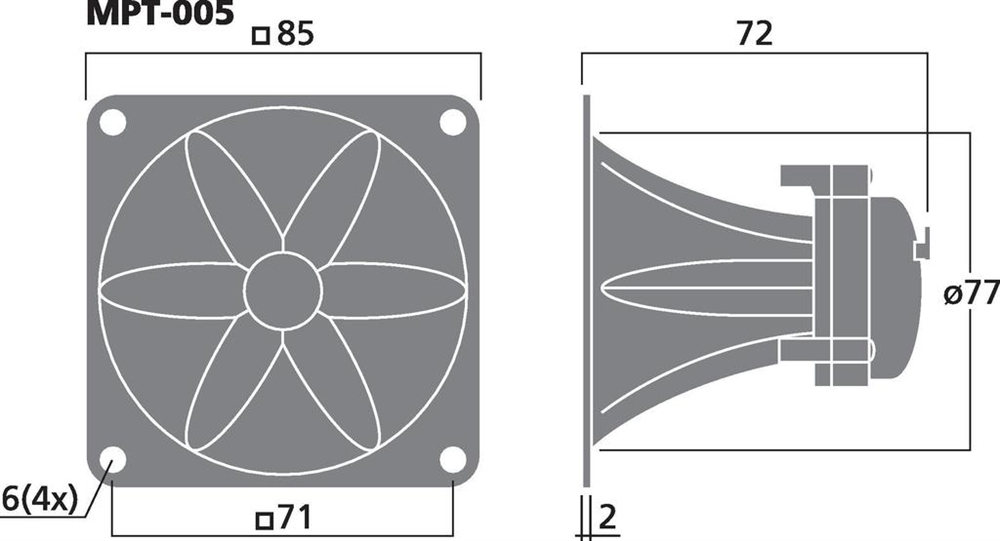

Mounting cutoutØ 77 mm
Mounting depth72 mm
Mounting hole diameter-
Hole spacing X-axis71 mm
Hole spacing Y-axis71 mm
Dimensions85 x 85 x 72 mm
Outside diameter-
Width85 mm
Height85 mm
Depth72 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight60 g
Packing unit1
Type of speaker-

Varenr.: 110480
