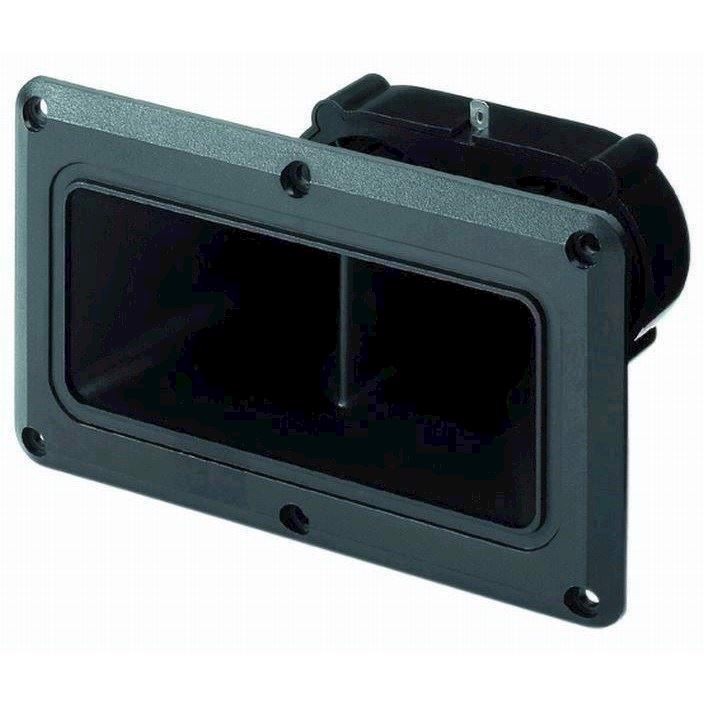

Piezohorn - MPT-177 - IMG STAGE LINE

Piezohorn - MPT-177 - IMG STAGE LINE
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for Piezohorn - MPT-177 - IMG STAGE LINE
    Produktet er endnu ikke bedømt
  •
    182,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




Piezo tweeter
  • Very high sound pressure level
  • Consistent frequency response


Impedance (Z)> 1,000 Ω
Transmission method-
Frequency range3,500-20,000 Hz
Resonant frequency (fs)-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating-
Peak music power output225 W (8 Ω system)
115 W (4 Ω system)
Sensitivity99 dB/W/m
Max. rated SPL-
Max. voltage∼ 30 V
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameter-

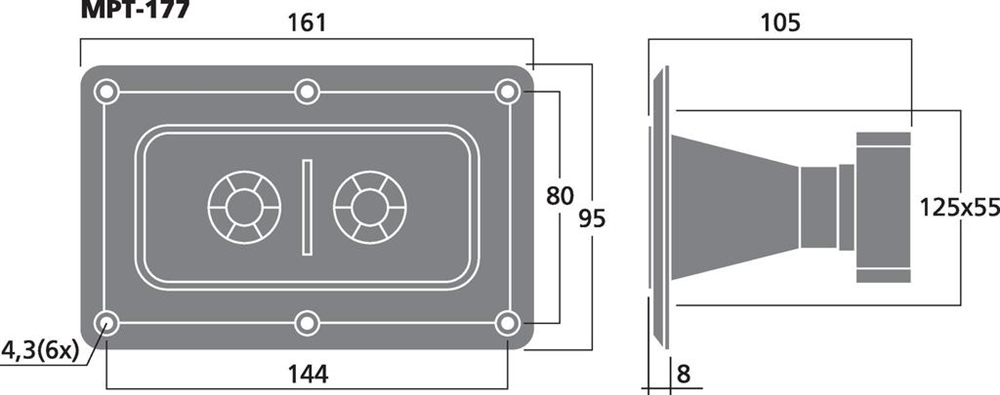

Mounting cutout125 x 55 mm
Mounting depth100 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-
Dimensions161 x 95 x 105 mm
Outside diameter-
Width161 mm
Height95 mm
Depth105 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight145 g
Packing unit1
Type of speaker-

Varenr.: 110540
